Motif IL_29346.3 Version IL_29346.3 of this group appears in releases 4.0 to 4.6
| #S | Loop id | PDB | Disc | #Non-core | Annotation | Chain(s) | Standardized name for chain | 1 | 2 | 3 | 4 | 5 | break | 6 | 7 | 1-7 | 5-6 | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | IL_3PDR_001 | 3PDR | 0.7027 | 1 | X | M-box riboswitch (ykoK leader) | C | 163 | G | 164 | A | 165 | U | 167 | G | 168 | * | C | 21 | G | 22 | cWW | cWW | |
| 2 | IL_4LFB_032 | 4LFB | 0.0000 | 0 | Left turn | A | SSU rRNA | G | 774 | G | 775 | G | 776 | A | 777 | G | 778 | * | U | 804 | C | 805 | cWW | cWW |
| 3 | IL_8B0X_035 | 8B0X | 0.0453 | 0 | Left turn (H) | A | SSU rRNA | G | 774 | G | 775 | G | 776 | A | 777 | G | 778 | * | U | 804 | C | 805 | cWW | cWW |
3D structures
Complete motif including flanking bases
| Sequence | Counts |
|---|---|
| GGGAG*UC | 2 |
| CGAUUG*CG | 1 |
Non-Watson-Crick part of the motif
| Sequence | Counts |
|---|---|
| GGA* | 2 |
| GAUU* | 1 |
Release history
| Release | 4.0 | 4.1 | 4.2 | 4.3 | 4.4 | 4.5 | 4.6 |
|---|---|---|---|---|---|---|---|
| Date | 2025-08-13 | 2025-09-10 | 2025-10-08 | 2025-11-05 | 2025-12-03 | 2025-12-31 | 2026-01-28 |
| Status | Updated, 1 parent | Exact match | Exact match | Exact match | Exact match | Exact match | Exact match |
Parent motifs
This motif has no parent motifs.
Children motifs
This motif has no children motifs.- Annotations
-
- (1)
- Left turn (1)
- Left turn (H) (1)

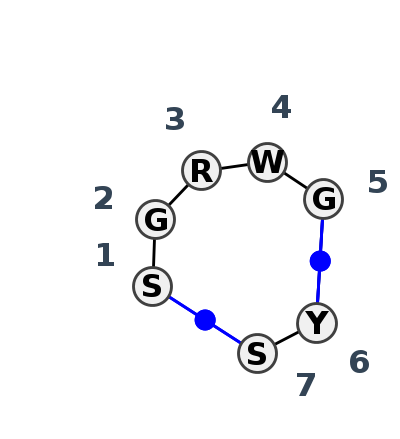

- Basepair signature
- cWW-L-cWW-L-L
- Heat map statistics
- Min 0.05 | Avg 0.32 | Max 0.70
